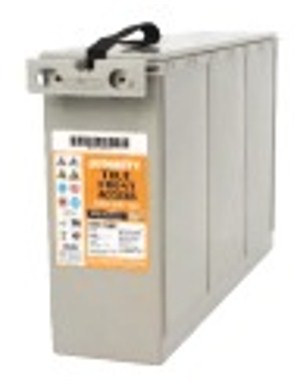

C&D Technologies - C&D Dynasty UPS-MRF Front Terminal Max Rate / High Rate Series Summary

ModelNo Availability Description
UPS12-355MRF By Authorized Distributor UPS - High Rate Multi-Cell VRLA Battery, AGM, Long Life low calcium proprietary fixed orifice alloy pasted grid plate, Polypropylene case, 12V with (2) M6 (threaded insert) terminals [358.4 WPC @15 min to 1.67vpc],[Ah (c20), Ah (c10), Ah (c8)], 20.1"L x 4.3"W x 9.3"H (max ht), 80 Lbs
UPS12-410MRXF By Authorized Distributor UPS - High Rate Multi-Cell VRLA Battery, AGM, Long Life low calcium proprietary fixed orifice alloy pasted grid plate, Polypropylene case, 12V with (2) M6 (threaded insert) terminals [410 WPC @15 min to 1.67vpc],[109.2Ah (c20), 104Ah (c10), 102.4Ah (c8)], 20.1"L x 4.3"W x 9.1"H (max ht), 81.8 Lbs
UPS12-615MRF By Authorized Distributor UPS - High Rate Multi-Cell VRLA Battery, AGM, Long Life low calcium proprietary fixed orifice alloy pasted grid plate, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [614 WPC @15 min to 1.67vpc],[175.8Ah (c20), 168Ah (c10), 164Ah (c8)], 22.01"L x 4.95"W x 11.14"H (max ht), 115 Lbs
UPS12-700MRF By Authorized Distributor UPS - High Rate Multi-Cell VRLA Battery, AGM, Long Life low calcium proprietary fixed orifice alloy pasted grid plate, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [697 WPC @15 min to 1.67vpc],[206Ah (c20), 195Ah (c10), 189.6Ah (c8)], 22.01"L x 4.95"W x 12.6"H (max ht), 131 Lbs
UPS12-745MRF By Authorized Distributor UPS - High Rate Multi-Cell VRLA Battery, AGM, Long Life low calcium proprietary fixed orifice alloy pasted grid plate, Polypropylene case, 12V with (2) 5/16 (threaded insert) terminals [734 WPC @15 min to 1.67vpc],[Ah (c20), 174Ah (c10), 170.4Ah (c8)], 20.99"L x 8.44"W x 8.8"H (max ht), 152 Lbs
UPS12-1000MRXF By Authorized Distributor UPS - High Rate Multi-Cell VRLA Battery, AGM, Long Life low calcium proprietary fixed orifice alloy pasted grid plate, Polypropylene case, 12V with (2) M8 (threaded insert) terminals [1000 WPC @15 min to 1.67vpc],[254Ah (c20), 243Ah (c10), 237.6Ah (c8)], 22"L x 6.1"W x 12.7"H (max ht), 188 Lbs
