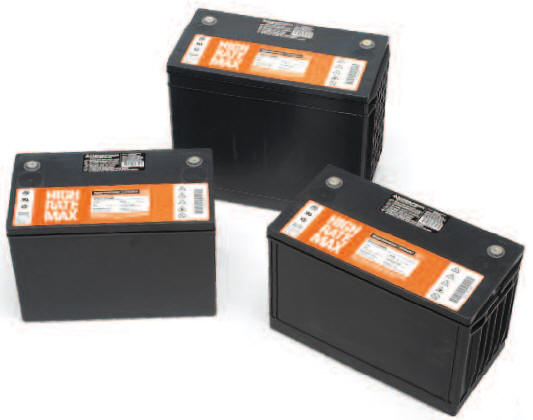

C&D Technologies - C&D Dynasty UPS-MRX Max Rate / High Rate Series Summary

ModelNo Availability Description
UPS12-100MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) #10-32 UNF (threaded insert) terminals [105.7 WPC @15 min to 1.67vpc],[34Ah (c20), 31Ah (c10), 30.4Ah (c8)], 7.76"L x 5.19"W x 6.8"H (max ht), 23.6 Lbs
UPS12-130MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) #10-32 UNF (threaded insert) terminals [135 WPC @15 min to 1.67vpc],[36Ah (c20), 33Ah (c10), 32Ah (c8)], 7.76"L x 5.19"W x 6.8"H (max ht), 25.4 Lbs
UPS12-150MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) #10-32 UNF (threaded insert) terminals [150 WPC @15 min to 1.67vpc],[36Ah (c20), 34Ah (c10), 32.8Ah (c8)], 7.76"L x 5.19"W x 6.8"H (max ht), 27.3 Lbs
UPS12-200MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) #10-32 UNF (threaded insert) terminals [200 WPC @15 min to 1.67vpc],[56Ah (c20), 51Ah (c10), 49.6Ah (c8)], 9"L x 5.48"W x 8.07"H (max ht), 39 Lbs
UPS12-220MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) #10-32 UNF (threaded insert) terminals [220 WPC @15 min to 1.67vpc],[56Ah (c20), 52Ah (c10), 50.4Ah (c8)], 9"L x 5.48"W x 8.07"H (max ht), 41.9 Lbs
UPS12-280MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [284 WPC @15 min to 1.67vpc],[84Ah (c20), 77Ah (c10), 74.4Ah (c8)], 10.27"L x 6.83"W x 8.01"H (max ht), 56.7 Lbs
UPS12-320MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [326.3 WPC @15 min to 1.67vpc],[84Ah (c20), 80Ah (c10), 79.2Ah (c8)], 10.27"L x 6.83"W x 8.01"H (max ht), 59.5 Lbs
UPS12-370MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [376.3 WPC @15 min to 1.67vpc],[102Ah (c20), 94Ah (c10), 91.2Ah (c8)], 12.04"L x 6.83"W x 8.05"H (max ht), 69.4 Lbs
UPS12-400MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [407.7 WPC @15 min to 1.67vpc],[110Ah (c20), 102Ah (c10), 100Ah (c8)], 13.42"L x 6.8"W x 8.52"H (max ht), 77.8 Lbs
UPS12-440MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [435.9 WPC @15 min to 1.67vpc],[120Ah (c20), 112Ah (c10), 108.8Ah (c8)], 13.42"L x 6.8"W x 8.52"H (max ht), 79.4 Lbs
UPS12-475MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [475 WPC @15 min to 1.67vpc],[114Ah (c20), 108Ah (c10), 105.6Ah (c8)], 13.42"L x 6.8"W x 8.52"H (max ht), 83.8 Lbs
UPS12-490MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [494.9 WPC @15 min to 1.67vpc],[150Ah (c20), 141Ah (c10), 138.4Ah (c8)], 13.57"L x 6.8"W x 10.93"H (max ht), 102.7 Lbs
UPS12-520MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [525 WPC @15 min to 1.67vpc],[154Ah (c20), 141Ah (c10), 137.6Ah (c8)], 13.57"L x 6.8"W x 10.93"H (max ht), 104.1 Lbs
UPS12-550MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [550.1 WPC @15 min to 1.67vpc],[154Ah (c20), 144Ah (c10), 140.8Ah (c8)], 13.57"L x 6.8"W x 10.93"H (max ht), 107.1 Lbs
UPS12-600MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [600.8 WPC @15 min to 1.67vpc],[148Ah (c20), 141Ah (c10), 139.2Ah (c8)], 13.57"L x 6.8"W x 10.93"H (max ht), 108.9 Lbs
UPS12-630MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) 1/4-20 UNC (threaded insert) terminals [ WPC @15 min to 1.67vpc],[Ah (c20), Ah (c10), Ah (c8)], 13.57"L x 6.8"W x 10.93"H (max ht),  Lbs
UPS12-775MRX Available to Asian and European Markets Only UPS High Rate Multi-Cell VRLA Battery, AGM, Polypropylene case, 12V with (2) M6 (threaded insert) terminals [ WPC @15 min to 1.67vpc],[Ah (c20), Ah (c10), Ah (c8)], 20.55"L x 9.43"W x 8.76"H (max ht),  Lbs
